AT-502XP

More power to you.

We’ve taken 500-series aircraft to a new level. The 502XP rises above other 500-gallon aircraft in high/hot conditions. Take off with a full load. All day, every day.

AT-502XP

The Air Tractor 502XP has the Xtra Power to haul a full load even on the hottest days. It’s a productive balance of an advanced airframe and engine—providing speed, capacity, and productivity in high and/or hot conditions. The 502XP will help you finish more acres in less time, with less effort. Driving that performance is the Pratt & Whitney PT6A-140AG turboprop engine. It has 867 horsepower available for takeoff all day, every day. The power is yours. Use it to your advantage.

AT-502XP Specifications

Engine Type
P&W PT6A-140AG
Engine SHP
867 @ 1900 RPM
Propeller
Hartzell HC-B4TN-3C/T10702NS
Take-off Weight
10,480 lbs (4.754 kg)
Landing Weight
8,000 lbs (3.629 kg)
Empty Weight with Spray Equipment
4,872 lbs (2.209 kg)
Useful Load
5,608 lbs (2.543 kg)
Hopper Capacity
500 US gal (1.893 L)
Fuel Capacity
234 US gal (885 L)
Wing Span
52 ft (15,84 m)
Wing Area
312 ft² (28,98 m²)
Main Wheel Size
29.00 x 11-10
Tail Wheel Size
5.00 x 5

AT-502XP Performance

Cruise Speed at 8,000 ft (2.438 m)
167 mph (145 kts)
Working Speed (Typical)
120-140 mph (104-122 kts)
Range - Economy Cruise at 8,000 ft (2.438 m)
668 mi (1.075 km)
Stall Speed - Flaps Up
82 mph (71 kts) at 8,000 lbs (3.629 kg)
Stall Speed - Flaps Down
68 mph (59 kts) at 8,000 lbs (3.629 kg)
Stall Speed as Usually Landed
53 mph (46 kts)
Rate of Climb
816 fpm at 10,480 lbs (4.754 kg)
Take-off Distance
1,308 ft at 10,480 lbs (4.754 kg)

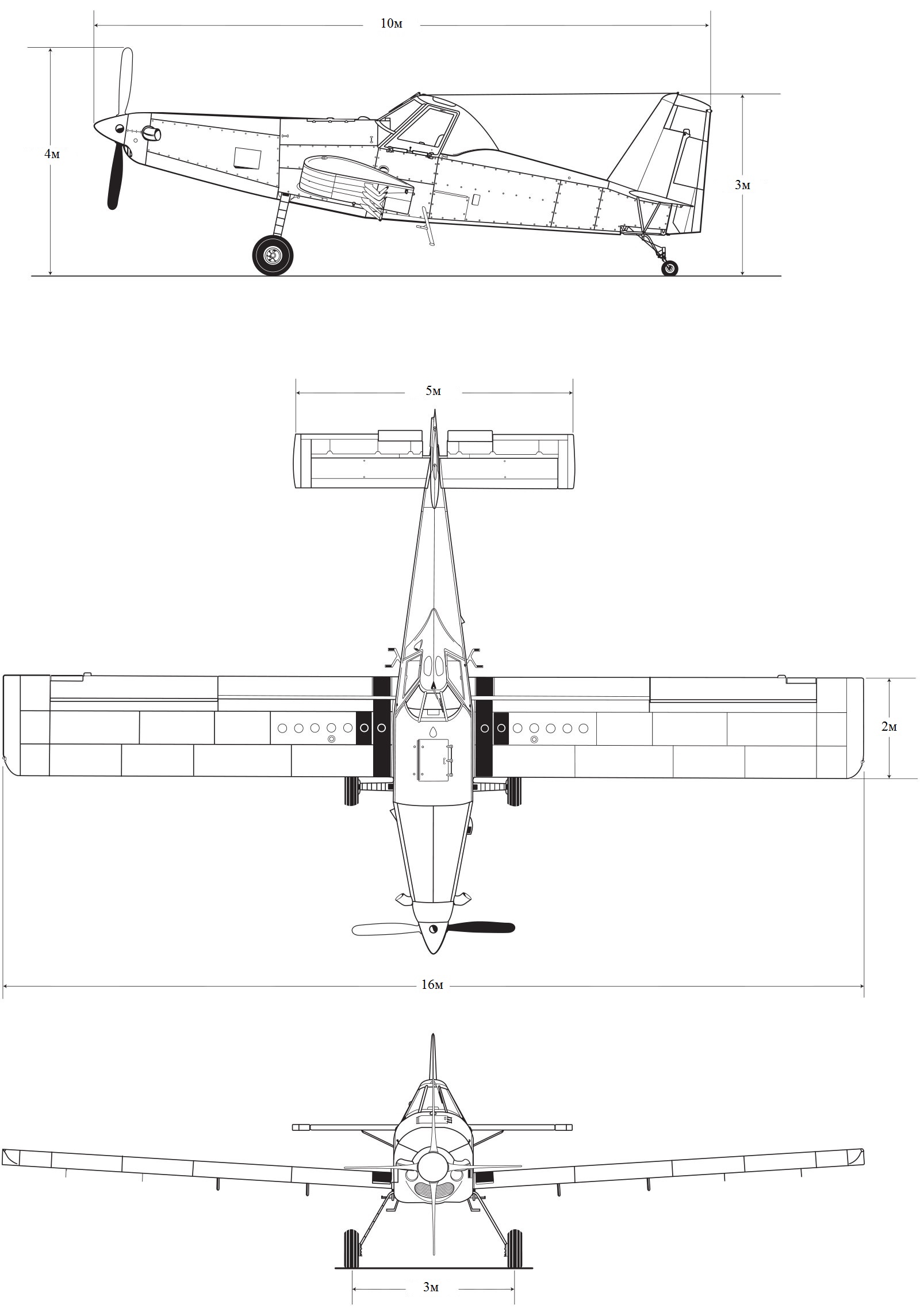

AT-502XP Dimensional Drawings

AT-502XP: Dimensional Drawings
