HIAT-650 TR/AG

For study and work

The HIAT-650 aircraft belongs to the class of very light aircraft and is certified on the basis of the European Aviation Safety Agency EASA Airworthiness Standards for light aircraft CS-VLA.

HIAT-650 TR/AG

The HIAT-650 aircraft belongs to the class of very light aircraft and is certified on the basis of the European Aviation Safety Agency EASA Airworthiness Standards for light aircraft CS-VLA.

HIAT-650 TR/AG is an entry-level piston aircraft. It is a versatile platform with a self-orienting tail support for primary training of agricultural aviation pilots. The successful combination of airframe and engine provides optimal flight speed and pilot safety. The HIAT-650 has the great advantage of side-by-side seating and dual controls. Side-by-side seating provides effective conditions for communication and load sharing between instructor and student. Dual control allows:
  • to approach the learning process correctly;
  • timely correct mistakes of the cadet-pilot;
  • to relieve the load of one of the pilots.

The aircraft is equipped with an Aero Sport Power O-360-A1A piston engine. The power plant allows to provide lower fuel costs and reduce the cost of initial training of agricultural aviation pilots.

HIAT-650 TR/AG Specifications

Engine Type
Aero Sport Power O-360-A1A
Engine SHP
180@ 2700 RPM
Propeller
MT Propeller MTV-12-B
Take-off Weight
1000 kg
Landing Weight
1000 kg
Hopper Capacity
53 US gal (200 L)
Fuel Capacity
200 L.
Wing Span
10,86 m
Wing Area
17,05 m2
Main Wheel Size
420х160
Tail Wheel Size
300х125

HIAT-650 TR/AG Performance

Working Speed (Typical)
160-220 KPH
Rate of Climb
1,98 mps
Take-off Distance
200 m at 1000 kg
Cruise Speed at 8,000 ft (3.000 m)
210 KPH
Range- Economy Cruise at 3000m
800 km

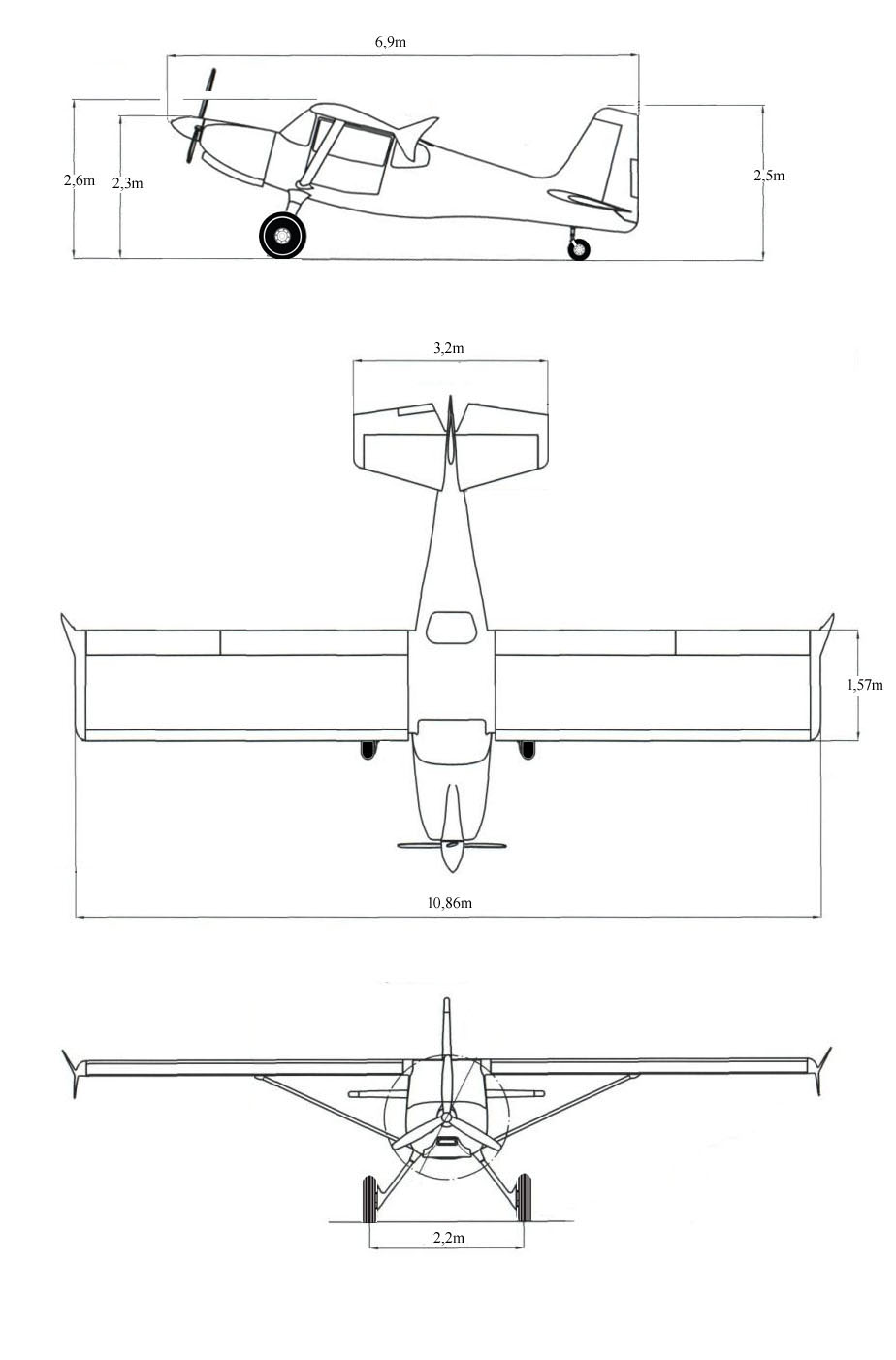

HIAT-650 TR/AG Dimensional Drawings

HIAT-650 TR/AG: Dimensional Drawings
